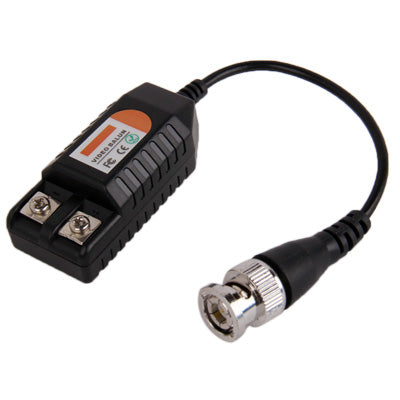

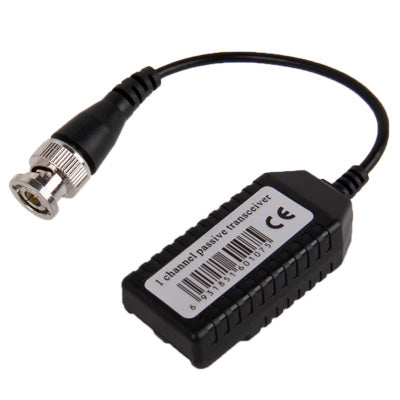

1 CH Passive Video Balun, Super Anti-Jamming Capability

1) Full-motion CCTV video, at distance up to 330m when used with any passive transceiver

2) Up to 1500m with any active UTP video receiver

3) NTSC / PAL / SECAM video formats

4) No power required

5) 60 dB crosstalk and noise immunity

6) Frequency response: DC TO 8MHz

7) Attenuation: 0.5dB typ

8) CMRR: 60dB

9) Impedance: BNC / 75 ohms Terminal / 100 ohms

10) Dimensions: 200 x 25 x 19mm
